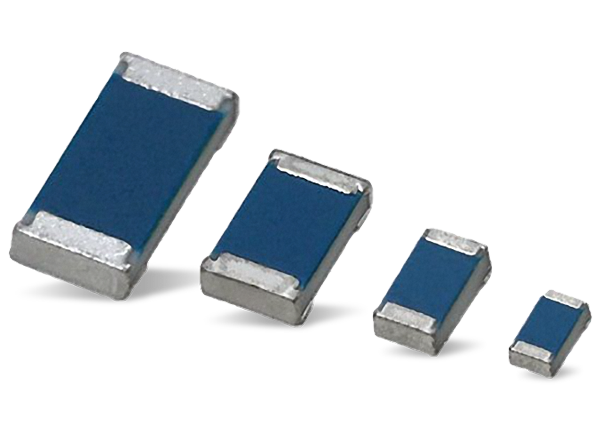

Vishay / Beyschlag MCx AT Pro AEC-Q200 Thin Film Chip Resistors

Vishay automotive MCx AT series Professional Thin Film Chip Resistors are AEC-Q200 qualified and approved to EN 140401-801. Additional features of the automotive MCx AT series Professional Thin Film Chip Resistors from Vishay include operating temperature up to 175 °C for 1000 hours, rated dissipation P85 up to 0.4 W for size 1206, superior temperature cycling robustness, waste gas resistance verified by ASTM B 809, superior temperature cycling robustness, and lead (Pb)-free solder contacts. Applications include automotive, industrial, telecommunication, medical equipment, and precision test and measuring equipment.

Features

  • Operating temperature up to 175°C for 1000 h
  • Rated dissipation P85 up to 0.4W for size 1206
  • AEC-Q200 qualified
  • Approved to EN 140401-801
  • Advanced sulfur resistance verified according to ASTM B 809
  • Superior temperature cycling robustness

Applications

  • Automotive
  • Telecommunication
  • Medical equipment
  • Industrial equipment

View All MCx Resistors

Vishay MCx Thin Film Resistors

A variety of uses, including automotive, industrial, telecommunications, and medical.

Learn Moreacerca de Vishay MCx Thin Film Resistors View Productsrelacionado con Vishay MCx Thin Film Resistors
View Results ( 44 ) Page
Número de referencia Hoja de datos Descripción Resistencia Tolerancia
MCT0603MD4990DP500 MCT0603MD4990DP500 Hoja de datos Resistores de película fina - SMD .15W 499ohms .5% 0603 25ppm Auto 499 Ohms 0.5 %
MCS0402MD4990DE000 MCS0402MD4990DE000 Hoja de datos Resistores de película fina - SMD .1W 499ohms .5% 0402 25ppm Auto 499 Ohms 0.5 %
MCA1206MD4992DP500 MCA1206MD4992DP500 Hoja de datos Resistores de película fina - SMD 1/4W 49.9Kohms .5% 1206 25ppm Auto 49.9 kOhms 0.5 %
MCA1206MD4990DP500 MCA1206MD4990DP500 Hoja de datos Resistores de película fina - SMD 1/4W 499ohms .5% 1206 25ppm Auto 499 Ohms 0.5 %
MCT0603MD4992DP500 MCT0603MD4992DP500 Hoja de datos Resistores de película fina - SMD .15W 49.9Kohms .5% 0603 25ppm Auto 49.9 kOhms 0.5 %
MCA1206MD1000DP500 MCA1206MD1000DP500 Hoja de datos Resistores de película fina - SMD 1/4W 100ohms .5% 1206 25ppm Auto 100 Ohms 0.5 %
MCU0805MD1003DP500 MCU0805MD1003DP500 Hoja de datos Resistores de película fina - SMD .2W 100Kohms .5% 0805 25ppm Auto 100 kOhms 0.5 %
MCA1206MD1001DP500 MCA1206MD1001DP500 Hoja de datos Resistores de película fina - SMD 1/4W 1Kohms .5% 1206 25ppm Auto 1 kOhms 0.5 %
MCA1206MD1002DP500 MCA1206MD1002DP500 Hoja de datos Resistores de película fina - SMD 1/4W 10Kohms .5% 1206 25ppm Auto 10 kOhms 0.5 %
MCA1206MD1003DP500 MCA1206MD1003DP500 Hoja de datos Resistores de película fina - SMD 1/4W 100Kohms .5% 1206 25ppm Auto 100 kOhms 0.5 %
