Toshiba UMOS9-H Silicon N-channel MOSFETs

Toshiba UMOS9-H Silicon N-channel MOSFETs are ideal for high-efficiency DC-to-DC converters, switching voltage regulators, and motor drivers. These MOSFETs boast a small gate charge, a small output charge, low drain-source on-resistance, and low leakage current. The UMOS9-H N-channel MOSFETs feature 80V drain-source voltage, ±20V gate-source voltage, and 175°C channel temperature. These MOSFETs also feature ±0.1µA gate leakage current, 10µA drain cut-off current, and a -55°C to 175°C storage temperature range. The UMOS9-H N-channel MOSFETs are RoHS-compliant and come in a 0.108g 2-5W1A (SOP Advance (N)) package.

Features

  • High-speed switching
  • Small gate charge
  • Small output charge
  • Low drain-source on-resistance
  • Low leakage current

Specifications

  • 80V drain-source voltage
  • ±20V gate-source voltage
  • 175°C channel temperature
  • ±0.1µA gate leakage current
  • 10µA drain cut-off current
  • -55°C to 175°C storage temperature range

Applications

  • High-efficiency DC-to-DC converters
  • Switching voltage regulators
  • Motor drivers

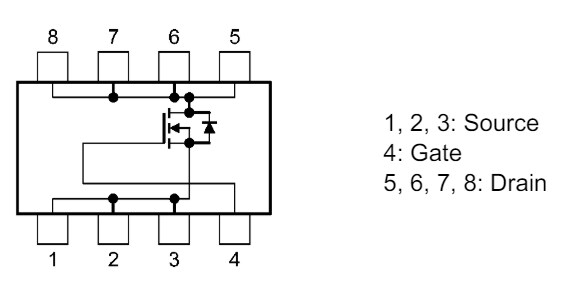

Internal Circuit

Toshiba UMOS9-H Silicon N-channel MOSFETs

Package Dimensions

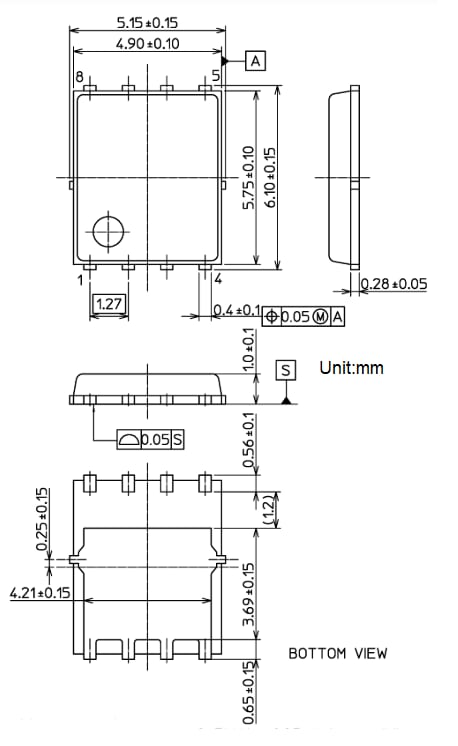

Mechanical Drawing - Toshiba UMOS9-H Silicon N-channel MOSFETs

Related Products

Toshiba TPD41x DC Motor Drivers & Controllers

Feature high-voltage PWM control and fabricated by a high-voltage SOI process.

Learn Moreacerca de Toshiba TPD41x DC Motor Drivers & Controllers View Productsrelacionado con Toshiba TPD41x DC Motor Drivers & Controllers
View Results ( 6 ) Page
Número de referencia Nombre Mfr Hoja de datos Vds (Tensión separación drenador-fuente) Id: corriente de drenaje continuo Rds encendido (drenaje de la fuente en resistencia) Pd (disipación de potencia) Tiempo de establecimiento Tiempo típico de retraso de apagado Tiempo de retardo de conexión típico Qg (carga de compuertas) Tiempo de caída
TPH8R808QM,LQ Toshiba TPH8R808QM,LQ Hoja de datos 60 V, 80 V 79 A 8.8 mOhms 109 W 10 ns 33 ns 24 ns 26 nC 8 ns
XPH1R104PS,L1XHQ Toshiba XPH1R104PS,L1XHQ Hoja de datos 40 V 120 A 1.96 mOhms 132 W 8 ns 71 ns 22 ns 55 nC 23 ns
XPHR7904PS,L1XHQ Toshiba XPHR7904PS,L1XHQ Hoja de datos 40 V 150 A 1.3 mOhms 170 W 10 ns 15 ns 23 ns 85 nC 35 ns
TPH6R008QM,LQ Toshiba TPH6R008QM,LQ Hoja de datos 60 V, 80 V 107 A 6 mOhms 135 W 11 ns 47 ns 26 ns 38 nC 11 ns
TPH1R204PB,L1Q Toshiba TPH1R204PB,L1Q Hoja de datos 40 V 240 A 1.2 mOhms 132 W 9 ns 61 ns 22 ns 62 nC 17 ns
TPH3R008QM,LQ Toshiba TPH3R008QM,LQ Hoja de datos 80 V 170 A 3 mOhms 180 W 21 ns 85 ns 42 ns 71 nC 26 ns
