TE Connectivity SMD Resistor Solutions
TE Connectivity's (TE) SMD Resistor Solutions allow designers to create smaller, lighter, faster, and more robust devices with expanded capabilities. SMD Resistors are surface-mount resistors that are low profile and make more efficient use of board space than through-hole resistors. TE SMD resistors offer up to three times the power of previous-generation resistors with a similar increase in power-to-size ratio. The wide variety of SMD resistor products includes thick-film SMD resistors that are well-suited for applications that involve higher power and thin-film SMD resistors that are well-suited for applications that require precision and stability.
Features
- Converts excess electrical energy into heat, using an electrically resistive material
- SMD resistors deliver 3x the power of previous-generation resistors and offer a similar increase in power-to-size ratio
- Smaller, lighter, and more robust in performance
- Provides more connections per component and a simpler/faster automated assembly
- Thick-film SMD resistors are well-suited for applications that involve higher power
- Thin-film SMD resistors are well-suited for applications that require precision and stability
Applications
- Automotive data connectivity for autonomous driving
- Server solutions
- Commercial and consumer drones
- Smartphone connectivity
- Shipbuilding and offshore solutions
Specifications
- 0Ω to 60GΩ resistance range
- 30mW to 7W power rating range
- 0% to 30% tolerance range
- 0PPM/°C to 3000PPM°/C temperature coefficient range
- 0603 to 15276 case code range

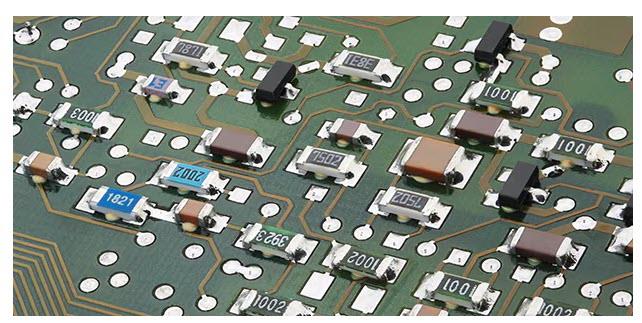

Low-Profile, Efficient SMD Resistors
Featured Resistors
TE Connectivity / CGS Resistencias de potencia moldeada SMD SMQ
Incluyen una resistencia de montaje en superficie con calificación AEC-Q200 y revestimiento ignífugo UL 94 V-0.
TE Connectivity / CGS Resistores de chip de terminales anchos 3430
Feature up to 3W high power with high reliability and multilayer electrode construction.
TE Connectivity 3560 Thick-Film Resistors
SMD Thick-Film Resistors featuring a 6W at 70°C power rating in a 4527 package.
TE Connectivity Resistencias de potencia SMD moldeadas con película metálica SM
Disponibles en cuatro valores nominales de hasta 7 W en intervalos muy amplios de valores y temperaturas de funcionamiento.
TE Connectivity CRGS SMD Anti-Surge Thick Film Chip Resistors
Small, lightweight, surge-tolerant, and ideal for auto-placement in volume.
TE Connectivity / CGS Resistencias de alimentación de película fina de las series 3503 y 3504
Tensión de funcionamiento de 100 V, resistencia de 50 Ω a 30 kΩ y un coeficiente de temperatura de resistencia de ±50 PPM/°C.
TE Connectivity SMA-A MELF Resistors
Metal film precision MELF resistor with an SMD enabled structure, tight tolerance, and low TCR.
TE Connectivity / Holsworthy 3502 SMD High Power Resistors
Thick film resistors suitable for auto-placement in volume applications.
TE Connectivity 3540 Thick-Film Resistors
SMD thick-film resistors featuring a 4W at 70°C power rating in a 2817 package.
TE Connectivity Resistencias de detección de corriente TLRP Metal Strip
Resistencias de detección de corriente de tiras metálicas con homologación AEC-Q200 para posiciones de detección de corriente.
TE Connectivity / Holsworthy SMV Metal Glaze High Voltage SMD Resistors
UL94V0 flame resistance and resistance to sulfur and high surge and pulse withstand capabilities.
TE Connectivity / Holsworthy CRGP Precision Pulse Thick Film Chip Resistors
Pulse-rated resistors with a -55°C ~ +155°C temperature range and features 0.125W to 2W power.
TE Connectivity / Holsworthy RN73 High Precision Resistors
Stable precision chip resistors offering a range of various power dissipation relating to chip size.
TE Connectivity / Holsworthy CRGCQ AEC-Q200 Thick Film Chip Resistors
Small size and light weight resistors in seven different packages, -55°C ~ +155°C temperature range.
TE Connectivity / Holsworthy Resistores de precisión de película fina Al2N3 RA73
Aluminum-Nitride, high stability chip resistors offering a very high power-to-size ratio.
TE Connectivity / Holsworthy RQ73 Thin Film Resistors
Built using high-grade raw materials and laser trimmed to give precise tolerance figures.
TE Connectivity Kits de laboratorio SMD para resistencias de película gruesa de alta potencia
Ofrecen un intervalo de tolerancia del 1 % al 5 % y se suministran en los tamaños 0402, 0603, 0805, 1206 y 2515.
TE Connectivity / CGS Resistencias de detección de corriente RLC73
Resistencias rentables y de bajo valor óhmico sin metales nobles.
TE Connectivity RP73P High Power Precision Resistors
Offer increased power dissipation, higher temperature capabilities, and increased working voltages.
TE Connectivity 3522 Thick-Film Resistors
Features a 3W at +70°C power rating in a 2512 package.
TE Connectivity / CGS Resistencias de alta potencia con carcasa de cemento de la serie SQ
Ofrecen una alta resistencia de aislamiento, baja temperatura superficial y un TCR excelente.
TE Connectivity / Holsworthy 3550 Thick Film SMD High Power Resistors
Provides a power rating of 5W at +70°C in a 4320 size package.
TE Connectivity / Holsworthy Metal Film Precision MELF SMA-Q Resistors
AEC-Q200 qualified and feature an improved coating for greater protection from humidity.
TE Connectivity / CGS Resistencias en chip metálico automático de alta potencia TLMQ
0.5W to 2W power range, 28.3A maximum overload current, & -55°C to +170°C temperature range.
TE Connectivity / Holsworthy Resistencias de precisión de película gruesa AEC-Q200 tipo RT73
Available in four different packages with standard resistance values provided in E96 and E24 series.
