Murata Electronics Design Kits
Murata Design Kits are designed to provide solutions for the passive component requirements of OEM design engineering, prototyping, and university lab research, as well as offer solutions for hobbyists. The components are available in a variety of popular sizes and values. Murata Design Kits cover an array of applications, including noise suppression, interface signal speeds, power supplies, matching circuits, and automotive.
Capacitor & Passive Kits
GRM Capacitor Kits are comprised of primary products for small size and large capacitance value with the latest technology. These multilayer capacitors feature thin layer, fine article, and high precision technology. Sn-plated electrode capacitors offer excellent solderability and high reliability with no polarity. Available in various sizes (0.25mm x 0.125mm to 5.7mm x 50mm) and capacitance values (0.10pF to 330µF).

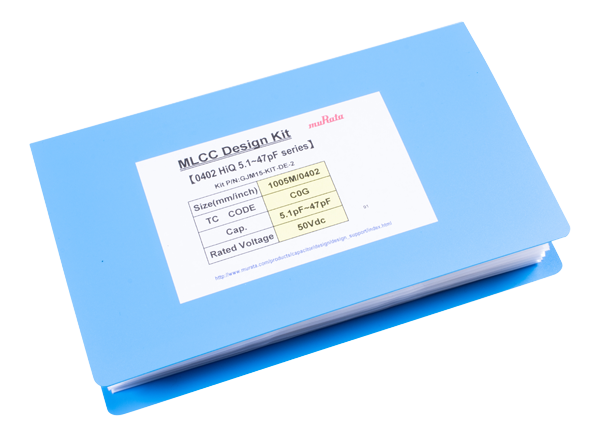

GJM Capacitors Kits include EIA 0201 and 0402 size ceramic chip capacitors. These capacitors improve high-frequency characteristics and contribute to a reduction of power consumption by the high Q and low ESR. Suited for RF filtering and RF matching applications generally above 5GHz where small size with tight capacitance tolerance is ideal. Available in various sizes (0.4mm x 0.2mm to 1.0mm x 0.5mm) and capacitance values (0.10pF to 47pF).
GCJ Capacitors Kits include capacitors with minimized cracking caused by flexing stress. These suppress the occurrence of cracking caused by deflection stress at the time of board mounting. Ideal for automotive applications such as ECU, control circuits of headlights, etc.
KIT LL-NFM-KIT-DE is comprised of various size SMD low-inductance MLCC capacitors to meet the decoupling demands of high-frequency applications such as semiconductors, ASICs, CPUs, graphics processors, and other high-speed signal lines. The kit features 42 values from 0.1uF to 10uF in X6S and X7R dielectrics.
EMI & Inductor Kits
EMI Power Kits
EKDMGN01A-KIT and EKDMGN02A-KIT use chip ferrite beads for noise suppression. EKDMGN02A-KIT features a small case size.
EKDMGN03-KIT is a common-mode choke kit composed of various size SMD EMI filters specifically for onboard power-line applications. The kit features 32 values in current ratings from 1000mA to 15A.
EKDMGN03A-KIT is ideal for signal lines and offers common-mode choke coils/noise filters.
EKDMGN04-KIT is a high-current noise filter kit featuring various size SMD EMI filters specifically for onboard power-line applications. The kit offers 32 values in current ratings from 1000mA to 15A.
EKDMGN05-KIT and EKDMGN06-KIT are comprised of chip inductors for RF circuits. EKDMGN05-KIT is offered in a small case size.
EKDMGN07-KIT and EKDMGN08A-KIT include power inductors that are well suited for DC-DC converter circuits. EKDMGN07-KIT features a small case size.
EKDMGN09-KIT and EKDMGN010-KIT are ideal for RF circuits and feature high Q chip inductors. The EKDMGN09-KIT is available in a 01005 package, and EKDMGN010-KIT comes in a 0201 case size.
Wound Metal Alloy Power Inductor Kits
EKDMPIMTLS-V01-KIT can be used for a wide range of high-current power circuits, from smartphones to industrial electronics and automotive device applications. 26 values, 240nH to 10µH range, 2mm to 3mm.
EKDMPIMTLM-V01-KIT is ideal for a wide range of high-current power circuits, including smartphones, industrial electronics, and automotive device applications. 19 values, 470nH to 10µH range, 4mm to 6mm.
EKDMPIMTLL-V01-KIT can be used for a range of high-current power circuits such as smartphones, industrial electronics, and automotive device applications. 26 values, 0.15µH to 10µH range, 6mm to 12mm.
EKDMGN011-KIT is well suited for DC-DC converter circuits and uses metal alloy power inductors.
Automotive Kits
EKDMPIAUTL-V01-KIT includes AEC-Q200 metal alloy inductors that offer large current and high efficiency. The kit features 33 values in an inductance range from 1µH to 22µH with a 125°C maximum operating temperature.
EKDMPIAUTH-V01-KIT features AEC-Q200 metal alloy inductors with large current and high efficiency. The kit offers 33 values in a range of inductance from 1µH to 22µH with a 155°C maximum operating temperature.
EKDMAT01-KIT is comprised of various ferrite chip beads, common-mode chokes, and EMI filter circuits suited for powertrain and safety automotive applications. The kit features 69 values in a range of resistance from 120Ω to 2500Ω and inductance from 11µH to 100µH.
EKDMAT01A-KIT is offered in a small case size and uses chip ferrite beads for automotive applications.
EKDMAT02-KIT is ideal for automotive applications and features power inductors.
EKDMAT03-KIT features chip ferrite beads/block type EMIFIL® for automotive uses.
EKDMAT04-KIT is an automotive kit that includes SMD common-mode choke coils.
Passive Starter Kits
Nordic Semiconductor nRF52x32 & nRF51x22 IC Passive Starter Kits
EKSM-PND51X22A-KIT and EKSM-PND52X32A-KIT feature integrated RF functionality, including BLUETOOTH® Low Energy ANT and 2.4GHz ultra-low-power communication. These passive starter kits support the reference design of the Nordic Semiconductor nRF52x32 and nRF51x22 with various sizes of Murata's range of capacitors, inductors, crystal, and balun products.
Murata Dialog Reference Design Kit for DA14682 & DA14683
Dialog Reference Design Kit supports the dialog's SmartBond™ DA14682 and DA14683 for smart home, industrial, and wearable devices. The SmartBond DA14682 and DA14683 offer high-security, expandable memory, and a Bluetooth 5 solution. This Murata Dialog Reference Design Kit provides a comprehensive set of components with supporting part information, ensuring support for designs that implement the DA14682 or DA14683.
